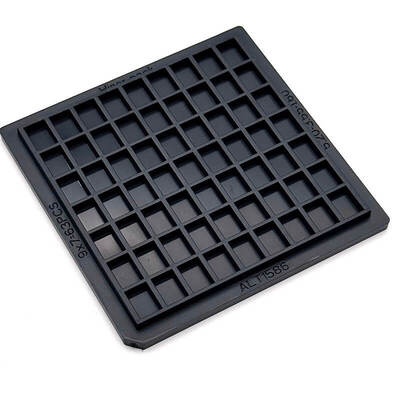

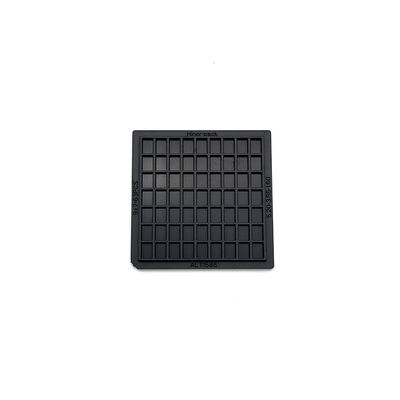

Cleanroom-Grade Waffle Pack Chip Trays for IC Handling Contamination Control

Nome da marca:	Hiner-pack
Número do modelo:	HN24132
MOQ:	500 unidades
preço:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Condições de pagamento:	T/T
Capacidade de abastecimento:	2.000 unidades/dia

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ROHS, ISO

Tray Weight:

Varia, normalmente até 500 gramas por cavidade

Cor:

Geralmente preto ou cinza escuro para proteção ESD

Garantia de Qualidade:

Garantia de entrega, qualidade fiável

Tamanho da cavidade:

5,0x3,35x1,20mm

Incoterms:

Exw, FOB, CIF, DDU, DDP

Tipo de molde:

Injeção

Reutilizável:

Sim

Forma da bandeja:

Retangular

Classe limpa:

Limpeza geral e ultrassônica

Tipo de IC:

BGA,QFP,QFN,LGA,PGA

Nível de embalagem:

Pacote de Transporte

Deformação:

Deformação MÁX. 0,3 mm

Capacidade:

9x7 = 63 peças

Detalhes da embalagem:

caixa, palete

Habilidade da fonte:

2.000 unidades/dia

Descrição do produto

Cleanroom-Grade Waffle Pack Chip Trays for IC Handling Contamination Control

Cleanroom-Grade Waffle Pack Chip Trays meet strict cleanroom industry standards. Trays provide professional contamination control performance, and offer safe stable handling for delicate fine pitch IC chips.

Cleanroom-Grade Waffle Pack Chip Trays adopt reliable JEDEC standard structure. Trays effectively avoid dust and pollution damage, and well protect precision semiconductor chips in manufacturing processes.

Cleanroom-Grade Waffle Pack Chip Trays deliver stable reliable chip carrier performance. Trays fit daily IC packaging, storage and transport work perfectly, keeping sensitive chips clean and intact.

Key Features/ Benefits

Support small batch production in the first batch.
Effective IC Contamination Control
Suitable for Delicate Fine Pitch ICs
More than 12 years of export experience.
Safe Stable Semiconductor Handling
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN24132
Material		MPPO
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7×50.7×7.4 mm
Cavity Size		5.0x3.35x1.20 mm
Matrix QTY		9x7=63 PCS
Warpage		MAX 0.2mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Cleanroom-Grade Waffle Pack Chip Trays provide full reliable IC protection during semiconductor manufacturing and transportation. Trays own excellent contamination control performance, and perfectly protect ESD-sensitive fine pitch chip devices.

Trays are widely used for fine pitch IC packaging (QFN, BGA, CSP), automated pick-and-place equipment, semiconductor inspection & testing work, as well as daily IC logistics and storage management.

Customized Services

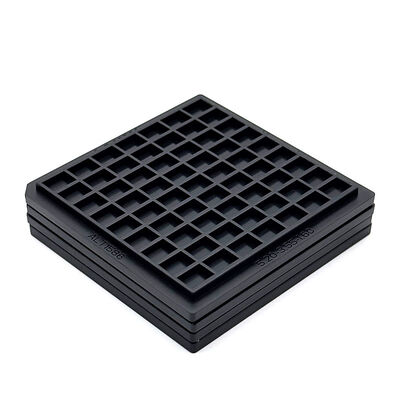

Cleanroom-Grade Waffle Pack Chip Trays support fully customized cavity sizes and layout designs. Trays adopt cleanroom-grade dust-free anti-static material, with stable stacking structure to avoid contamination damage during transit.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
