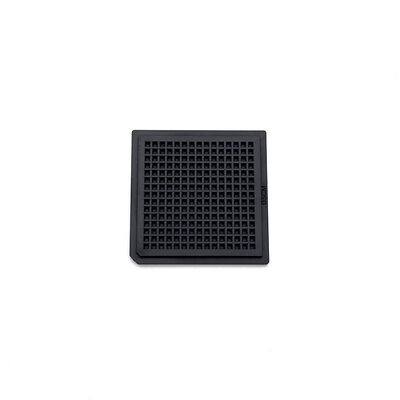

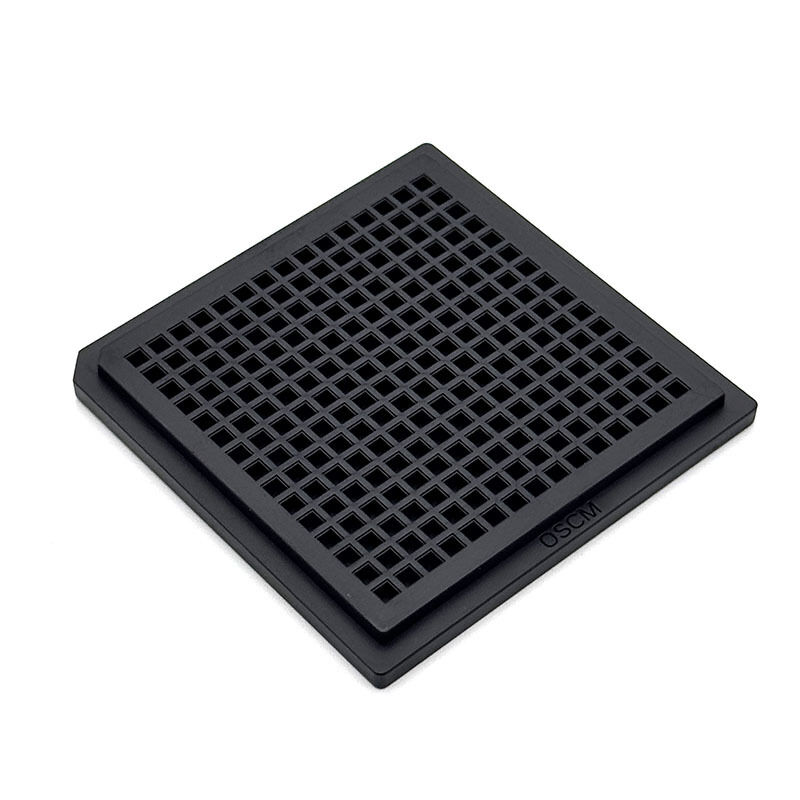

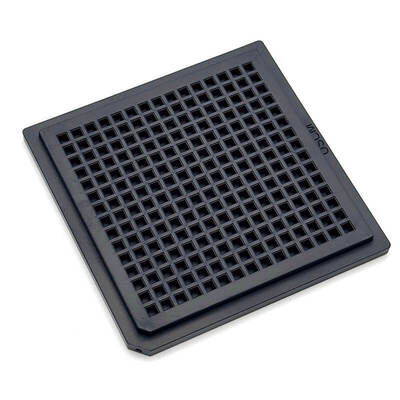

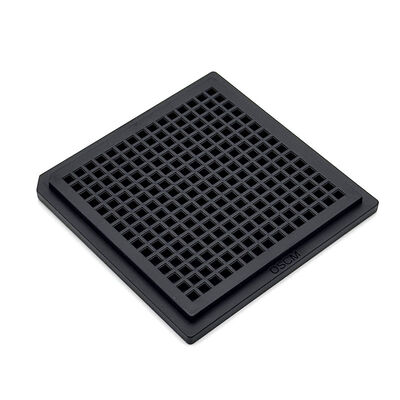

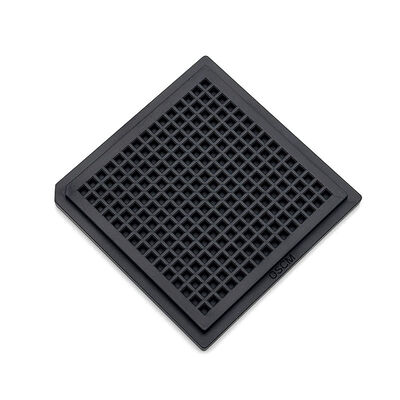

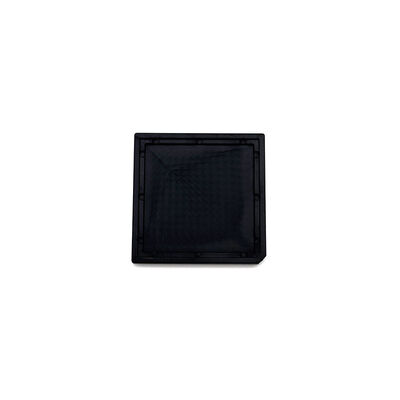

Durable Waffle Pack IC Trays for Contamination Control & Safe Chip Handling

Nome da marca:	Hiner-pack
Número do modelo:	HN24146
MOQ:	500 unidades
preço:	$1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities）
Condições de pagamento:	T/T
Capacidade de abastecimento:	2.000 unidades/dia

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ROHS, ISO

Tray Weight:

Varia, normalmente até 500 gramas por cavidade

Cor:

Preto

Garantia de Qualidade:

Garantia de entrega, qualidade fiável

Tamanho da linha de contorno:

50,8×50,8×4,36mm

Tamanho da cavidade:

1,08x1,08x2,18mm

Incoterms:

Exw, FOB, CIF, DDU, DDP

Tipo de molde:

Injeção

Reutilizável:

Sim

Forma da bandeja:

Retangular

Classe limpa:

Limpeza geral e ultrassônica

Tipo de IC:

BGA,QFP,QFN,LGA,PGA

Nível de embalagem:

Pacote de Transporte

Deformação:

Deformação MÁX. 0,26 mm

Capacidade:

15x15=215 PCS

Detalhes da embalagem:

caixa, palete

Habilidade da fonte:

2.000 unidades/dia

Descrição do produto

Durable Waffle Pack IC Trays for Contamination Control & Safe Chip Handling

High-Precision Cleanroom Waffle Pack IC Trays adopt dense precise grid cavity structure, meeting strict cleanroom industry standards.

With excellent contamination control & dust-proof performance, the trays provide stable safe handling, storage and transportation protection for delicate ESD-sensitive fine pitch semiconductor IC chips.

They are perfectly suitable for semiconductor manufacturing, packaging, inspection & testing processes, and support fully customized cavity size & layout designs to match various chip specifications.

Key Features/ Benefits

Anti-static & dust-proof design for safe chip handling
High-precision compact grid cavity structure
Suitable for Delicate Fine Pitch ICs
More than 12 years of export experience.
Support fully customized cavity sizes and layout designs
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN24146
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.8×50.8×4.36 mm
Cavity Size		1.08x1.08x2.18 mm
Matrix QTY		15x15=215 PCS
Warpage		MAX 0.25mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Cleanroom-grade Waffle Pack IC Trays provide full protection for semiconductor chips with contamination control & ESD anti-static performance.

Fine pitch IC packaging (QFN, BGA, CSP bare die)
JEDEC compatible automated pick-and-place lines
Semiconductor inspection & testing processes
Cleanroom IC logistics transportation & storage management

Packaging & Shipping/ Services

Our high-precision JEDEC trays are packaged in durable, ESD-safe anti-static materials with secure interlocking stacking design and shock-absorbing cushioning inserts, ensuring maximum protection against physical damage, electrostatic discharge, and contamination during transit and storage.

All shipments are fully tracked and handled by trusted global logistics carriers, ensuring reliable, on-time worldwide delivery to your facility. We provide flexible shipping options to meet your urgent production needs, including expedited shipping for rush orders, and comprehensive shipping documentation to streamline customs clearance for international orders.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
