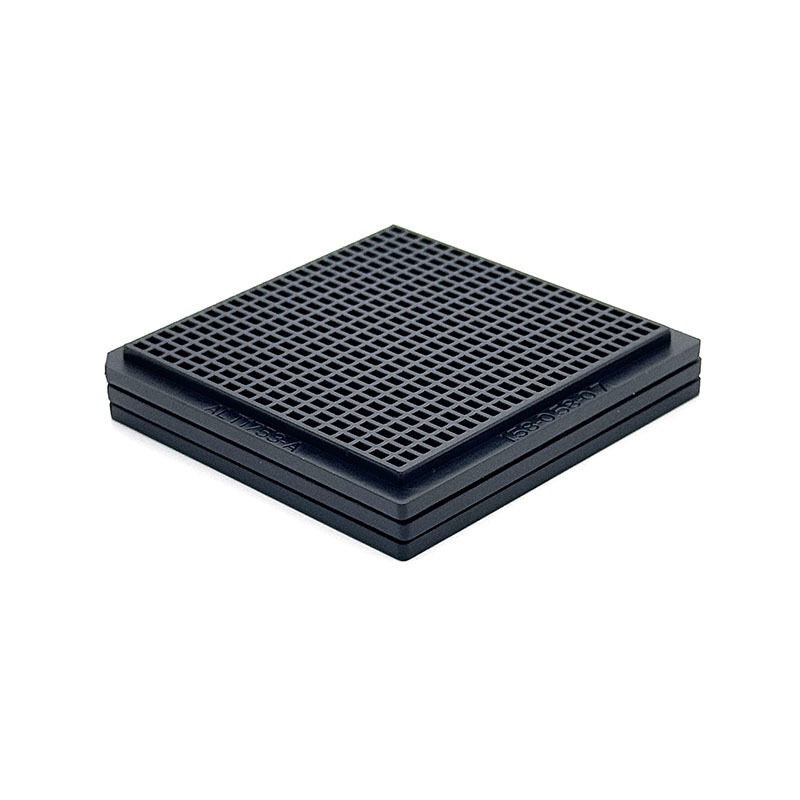

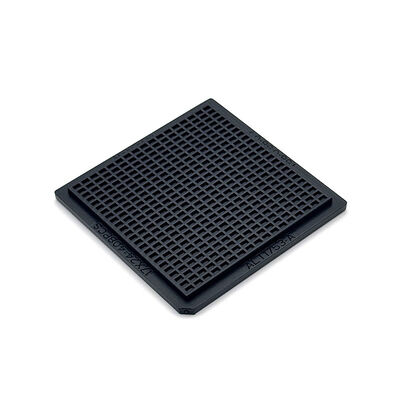

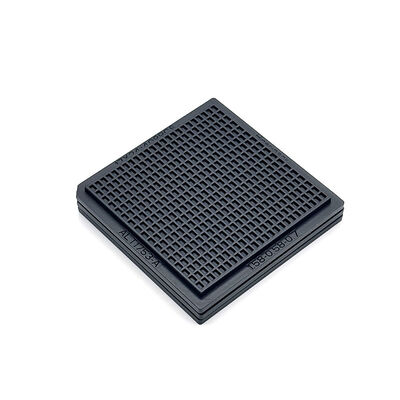

ESD-Safe Waffle Pack Chip Trays for Semiconductor Storage

Nome da marca:	Hiner-pack
Número do modelo:	HN24194
MOQ:	500 unidades
preço:	$1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities）
Condições de pagamento:	T/T
Capacidade de abastecimento:	2.000 unidades/dia

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

ROHS, ISO

Tray Weight:

Varia, normalmente até 500 gramas por cavidade

Cor:

Preto

Garantia de Qualidade:

Garantia de entrega, qualidade fiável

Tamanho da linha de contorno:

50,7×50,7×4mm

Tamanho da cavidade:

1,58x0,85x0,7mm

Incoterms:

Exw, FOB, CIF, DDU, DDP

Tipo de molde:

Injeção

Reutilizável:

Sim

Forma da bandeja:

Retangular

Classe limpa:

Limpeza geral e ultrassônica

Tipo de IC:

BGA,QFP,QFN,LGA,PGA

Nível de embalagem:

Pacote de Transporte

Deformação:

Empenamento MÁX. 0,22 mm

Capacidade:

17x24=408 PCS

Detalhes da embalagem:

caixa, palete

Habilidade da fonte:

2.000 unidades/dia

Descrição do produto

ESD-Safe Waffle Pack Chip Trays for Semiconductor Storage

Deliver precise waffle structure to cradle delicate IC chips tightly, preventing movement and electrostatic damage during handling. Crafted from durable anti-static material to maintain consistent performance in industrial environments, offering reliable protection for sensitive semiconductor components.

Integrate seamlessly with automated production lines and clean manufacturing workflows, performing steadily in chip loading, transfer, and inventory management procedures. Adapt flexibly to diverse semiconductor manufacturing scenarios, supporting efficient production and logistics operations.

Support full customization of cavity size and layout to match unique chip dimensions. Align with clean production standards, delivering tailored solutions that optimize packaging efficiency and safeguard IC chips throughout transit and storage.

Key Features/ Benefits

Durable construction
Precision cavity layout
Durable construction
Secure chip holding
ESD-safe protection
The factory has ISO certification, and the products comply with the RoHS standard.

Specifications

Brand		Hiner-pack
Model		HN24194
Color		Black
Resistance		1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size		50.7×50.7×4 mm
Cavity Size		1.58x0.85x0.7 mm
Matrix QTY		17x24=408 PCS
Warpage		MAX 0.22mm
Service		Accept OEM, ODM
Custom Pocket Options		Available

Applications

Suitable for high-precision chip processing, component sorting, device testing, and small device assembly. Work well in automatic production lines and static-controlled workshops.

Ideal for factory internal transportation, finished product storage, and cross-regional goods delivery. Widely used in chip manufacturing, packaging plants, and electronic component suppliers.

Customized Services

Provide fully customized solutions for waffle pack chip trays. Adjust cavity size, spacing, and layout to fit diverse chip dimensions.

Leverage durable anti-static material for enhanced protection. Offer prototype testing and personalized design support to meet unique production and packaging needs.

About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

Rich experience in JEDEC / IC / Waffle pack trays
In-house mold design capability
Fast prototype development
Strict QC process
Stable supply for global semiconductor customers
